Description
A VERSATILE TORQUE WRENCH THAT NEEDS TO BE IN EVERY WORKSHOP
This tool provides unprecedented levels of control , accuracy and convenience. Truly a new generation of HIGH TECH
User Friendly that is efficient and reduces procedures with its ability to measure torque torque/angle in one step.
Angle measurement starts when torque has been reached.
9 pre settable target torque values.
Functions in clock wise (CW) and counter clock wise ((CCW) directions

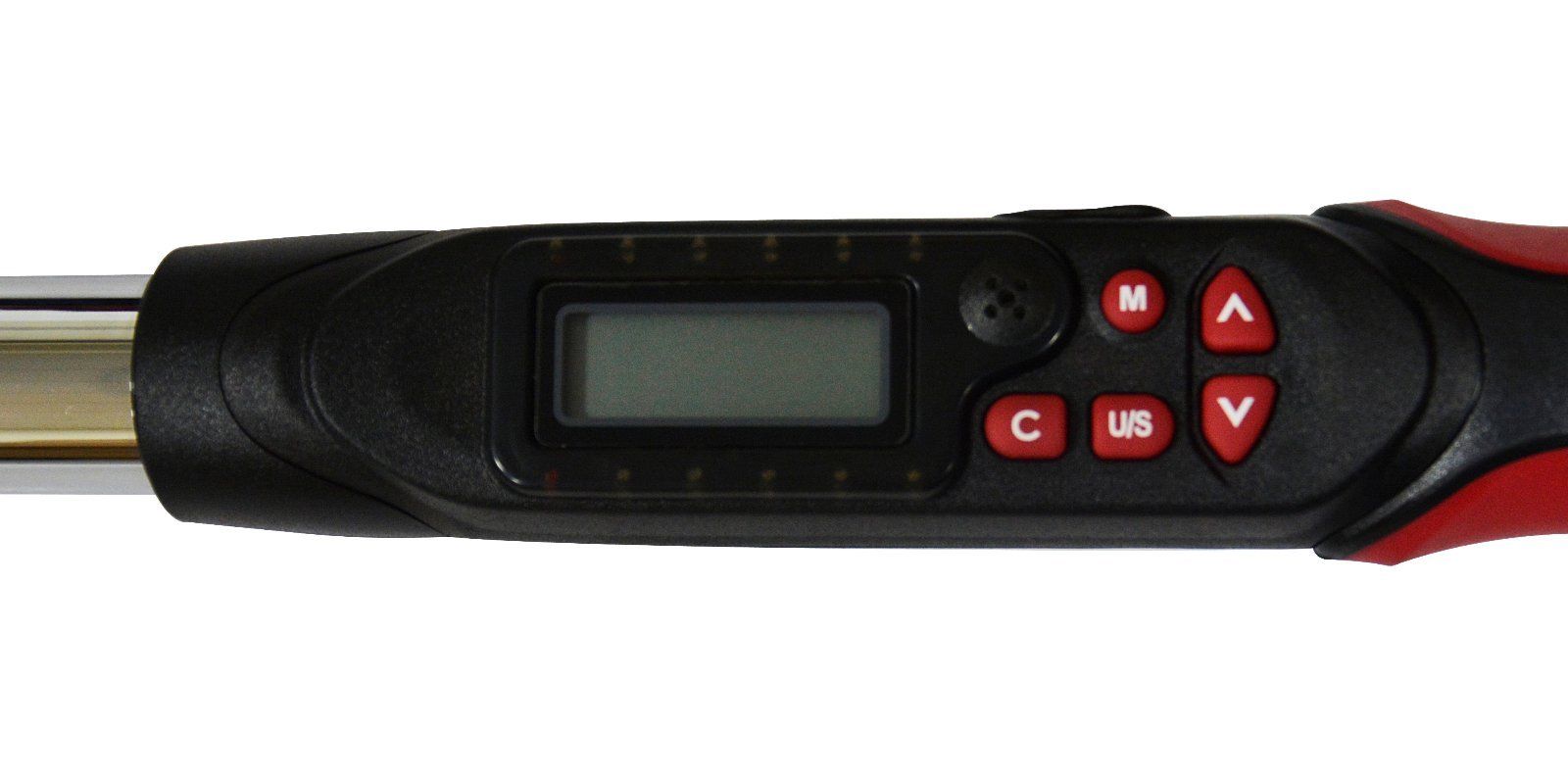

Audible and visible torque confirmation by means of BUZZER and 12 LED’s display
Whilst in use, regardless that the LCD display is not in sight, the design is such that the 12 LCD’s can be seen side on thereby alerting the user of the reading status.

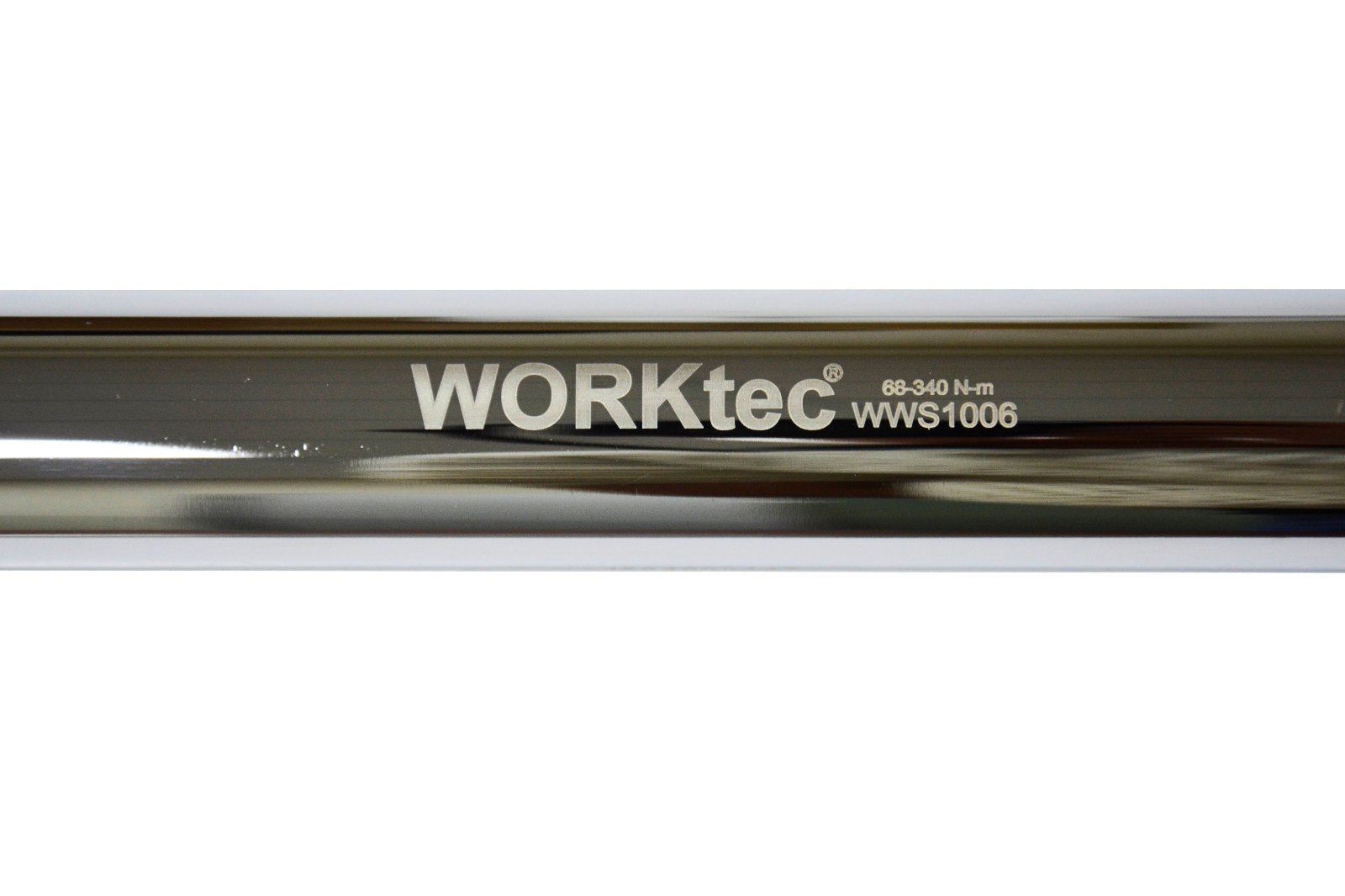

Unique traceable code for each wrench.
Water indicator inside.

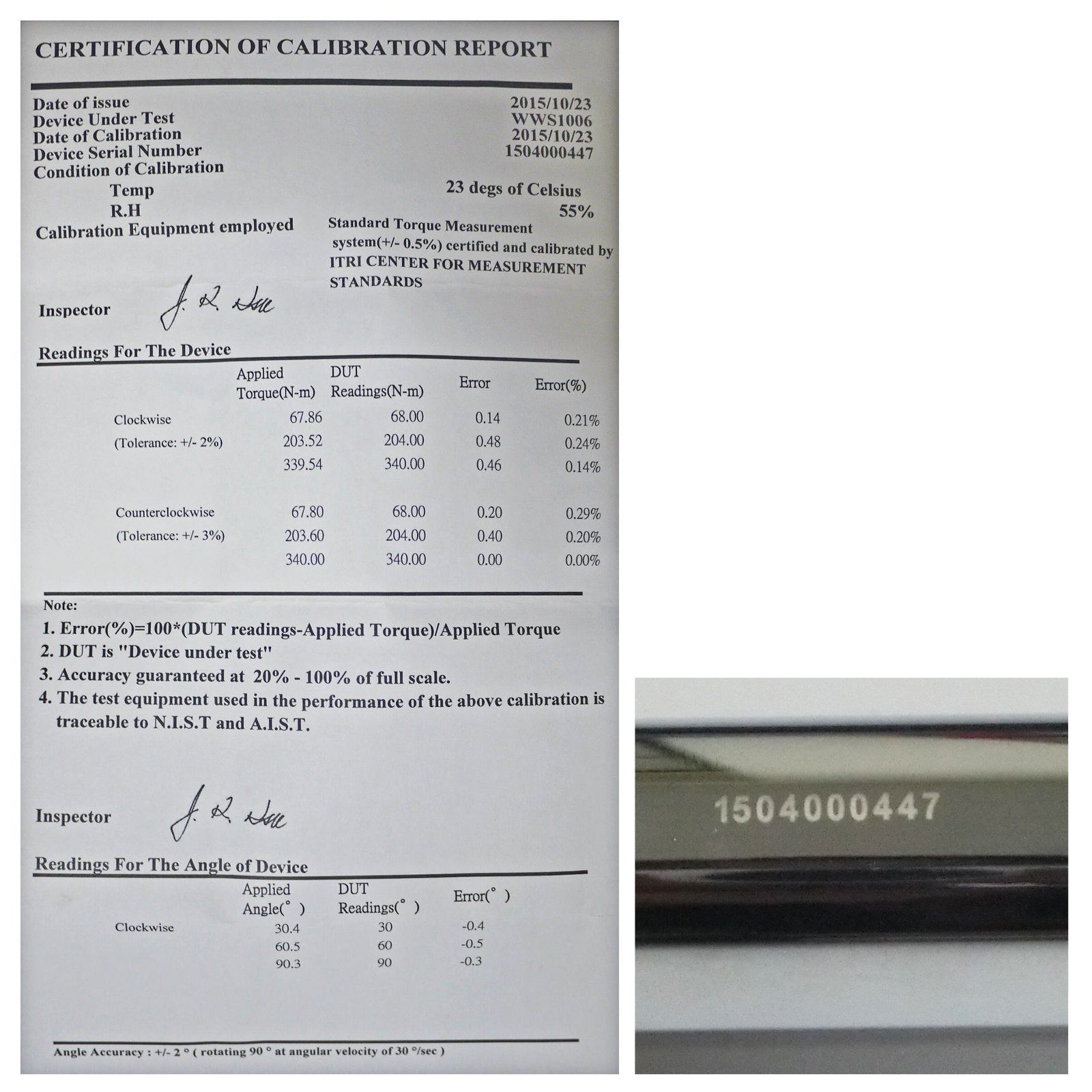

On-line calibration port.
Passed strict environmental & electromagnetic compatibility tests.
Non Slip grip
Specifications:
Accuracy : CW +/- 2%, CCW +- 3%
Angle Accuracy: +/- 2% (rotating 90 degrees at speed of 30 degrees/sec)
Length: 650mm
Max Torque & Angle: 340Nm/ 250.7ft-lb/ 3009 in-lb/ 3469kg-cm/999 degrees
Torque & Angle Measuring Range: 17-340Nm, 12.5-250.5ft-lb, 150-3000in-lb, 173-3469kg-cm/ 1degree
Data memory Size : 50
Bright LED: 12 (2 Red+ 10 Green)
Operation Mode: Peak Hold/Track

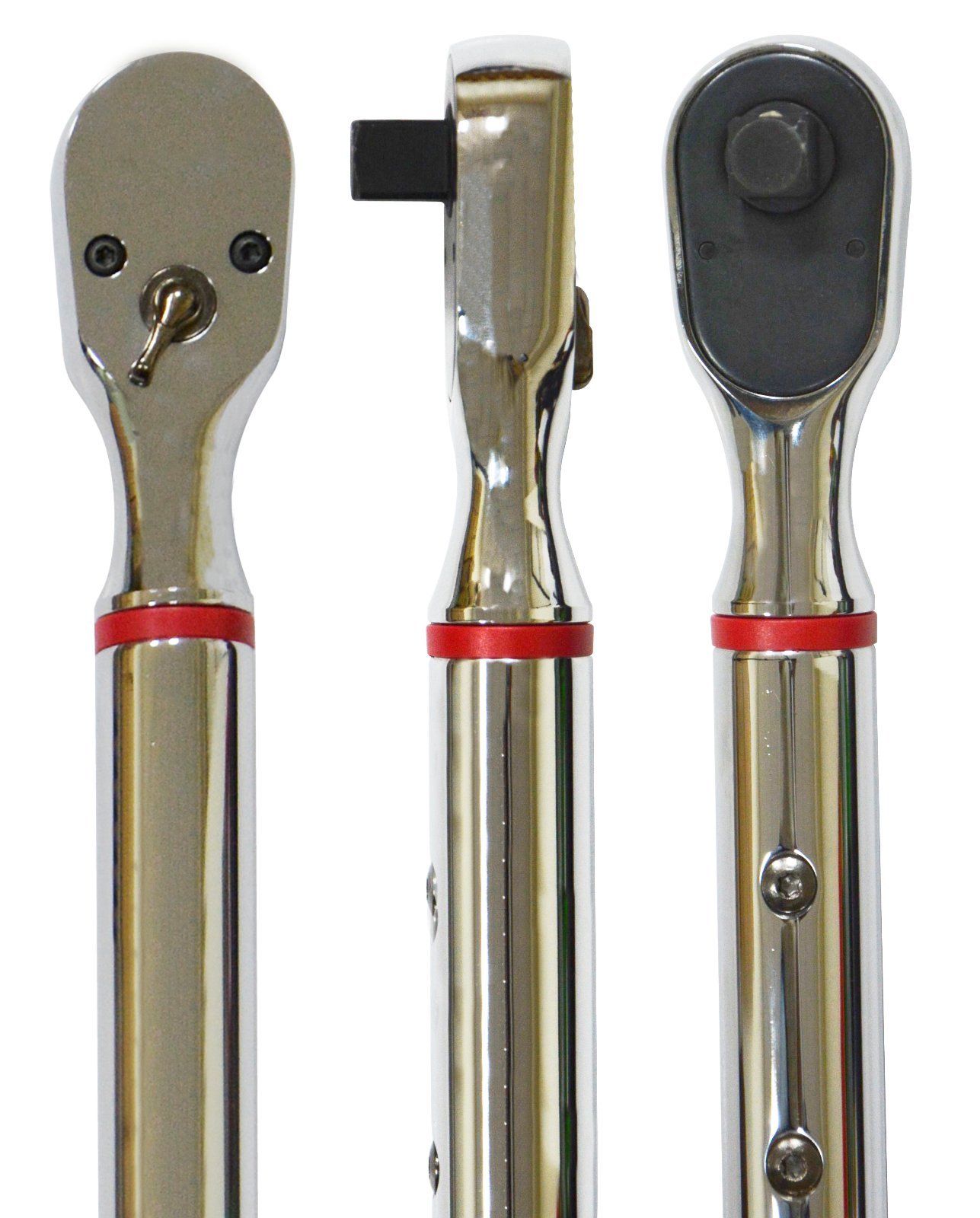

Gear Teeth : 36
Buttons: 5
Battery: AA x 2
Operating Temperature: -10C to 60C
Storage Temperature: -20C to 70C
Humidity: up to 90% non-condensing
Drop Test : 1 Meter
Vibration Test : 10G
Weight: 2260 grams
Packing Dimensions: 68*12.5*6.5cm
